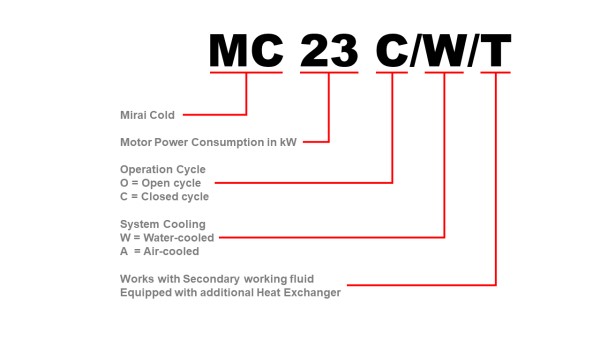

MC23CWT_sideMC23T_Nomenclature_ENMC23CWT

OIL FREE
– No oil in the system due to air bearings
– Reduced costs
CONTROL SYSTEM
– Real-time monitoring system
– Ability to integrate software intervals
– Data archiving at specified intervals
ENERGY EFFICIENCY
– Reduced power consumption up to 30 %
REDUCED OPERATING COSTS
– Long lifecycle of equipment due to the lack of contacting pairs and chemically active substances
– Easy service with no special training
LEGISLATIVE COMPLIANCE
– Compliance with all international standards and regulations
AIR AS REFRIGERANT
– No need to refilling
– Environmentally friendly
NO VIBRATION OR NOISE
– Turbo-module design reduces noise and vibrations
SAFE SOLUTION
– No chemically active substances
– No risk of fire
TEMPERATURE ACCURACY OF 0.5 °C
– Frequency inverter allows maintaining 0.5 °C temperature accuracy

For more information visit MIRAI Intex

Product Description

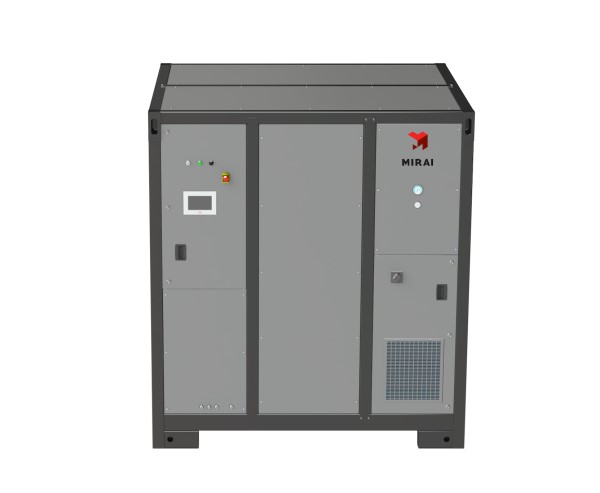

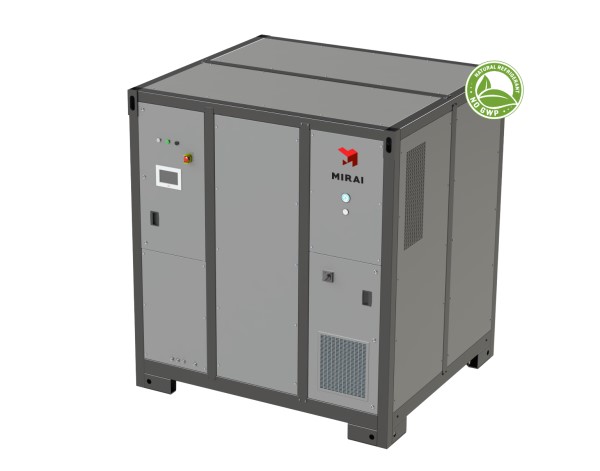

MODEL NAME MIRAI Cold 23 T (MC 23 C/W/T)
REFRIGERANT Natural Air
TEMPERATURE RANGE From -40 °C to -110 °C
SYSTEM COOLING Water-Cooled
OPERATION CYCLE Closed Cycle
REFRIGERATION CAPACITY Up to 15 kW
RATED MOTOR POWER 22.5 kW
NOISE LEVEL 70 dB
MAXIMUM ROTATION SPEED 48 000 rpm
DIMENSIONS (L x W x H) 200 x 210 x 230 cm
WEIGHT 2 500 kg

AIR CYCLE TECHNOLOGY

The technology is based on the heating capability of air during compression and cooling down during the expansion process at turbo-expander. Repetition of compression and expansion cycles allows reaching and maintaining ultra-low temperatures down to -160 °C.

KEY DESIGN FEATURE

A key technological feature is that turbo-expander and compressor are located on the same shaft. The energy produced during the expansion process is transferred through the shaft to the compressor, which allows to reduce energy consumption up to 30 % in comparison to standard vapour compression systems.

REFRIGERATION MACHINES ARE AVAILABLE IN VARIOUS CONFIGURATIONS:

  • Open cycle – the cooled air is supplied directly to the refrigeration chamber from the machine
  • Closed cycle – machine operates as an indirect refrigeration system and is equipped with heatexchanger for the secondary cooling medium
  • Water/air-cooled – the machine is cooled by water or air
