The KRYOSTICK® JUMBO

A secured freezing solution
  • Defrosting –Freezing –Conditionning
  • Cycles which cannot be modified by the operator
  • 3 hours and 30 minutes for 1260 sticks of 450 g
  • Uniform ventilation over the whole height of the load.
  • A conservation below the deep-freeze point of the sticks (-0.5°C).
  • Automatic facilities making use easier and safer
  • Touch screen which displays different functions
  • L 2170 x W 2170 x H 2380.
  • Door Ope: W 1000 x H 1900.
  • 85mm thick insulation.
  • Finish metal body heat cured.
[/vc_column_text][/vc_column][vc_column width="1/3"][vc_single_image image="1327" img_size="full" alignment="right"][/vc_column][/vc_row] [vc_row][vc_column width="2/3"][vc_column_text]

Refrigeration equipment :

  • Defrosting –Freezing –Conditionning
  • Cycles which cannot be modified by the operator
  • 3 hours and 30 minutes for 1260 sticks of 450 g
  • Uniform ventilation over the whole height of the load.
  • A conservation below the deep-freeze point of the sticks (-0.5°C).
[/vc_column_text][/vc_column][vc_column width="1/3"][vc_single_image image="1328" img_size="full" alignment="right"][/vc_column][/vc_row] [vc_row][vc_column width="2/3"][vc_column_text]

Our Solution The KRYOSTICK® JUMBO :

1st PHASE : DEFROSTING 1 The KRYOSTICK® is warmed up during 15 minutes with electrical resistors. 2nd PHASE : FREEZING 2 Freezing stage during which the eutectic liquid passes into the solid state (in 2h30). It should be noted that it is the change of state which makes it possible to accumulate almost all the cold. 3rd PHASE : CONDITIONNING 3 The unit automatically switches to airing mode for 30 minutes to closer the temperature at-10°C at the end of the cycle (in all the sticks). 4th PHASE : STORAGE 4 The cell automatically moves into conservation mode, it provides a maintenance temperature of -10°C to -12°C (to ensure the sustainability of the refrigeration equipment and maintain this performance, the shelf time should not exceed 4 hours). [/vc_column_text][/vc_column][vc_column width="1/3"][vc_single_image image="1329" img_size="full" alignment="right"][/vc_column][/vc_row]

Presentation of a test for a client

Eutectic icepacks freezing
  • Aim of the test carried out: Determine the time freezing of all icepacks with a Kryostick®cell.
  • 15 sticks per panier-stick ® / 12 baskets on trolley ie 180 sticks.
  • sticks provided by our client of 420g with an non condensing envelope dimensions:
  • t:36, l:90, h:185 mm. Eutectic Point: -0,5°C.
  • Containing a blend in gel form.
  • Objective: reach in every ice pack a temperature of -12°C to heart, starting from an initial temperature of 20°C

Presentation of the test carried out

Positioning of probes for the test phase

Product Description

Your Issue

  • Management of the cold chain is a major issue for your current and future competitiveness.
  • Difficulty to respond to the growing needs of productivity chain preparation.
  • No standardization of equipment for freezing & storage of eutectic icepacks.
  • Failure of users to follow instructions and procedures for freezing icepacks.
  • Current equipment insufficiently powerful and ill-suited to intensive use.

Our Solutions

KRYOSTICK® & KRYOSTORE

Flexible and efficient freezing
Creation and development of a complete range of solutions to freeze and store eutectic ice pack.

  • No operator handling required,Pre-programmed defrost and freezing cycle
  • Respect of the freezing cycle,Door inaccessible throughout the freezing cycle,
  • Homogenous ice packs freezing at the end of cycle.Uniform ventilation over the whole height of the load
  • Equipment perfectly designed for rapid freezing.Fast freezing of ice packs in only a few hours

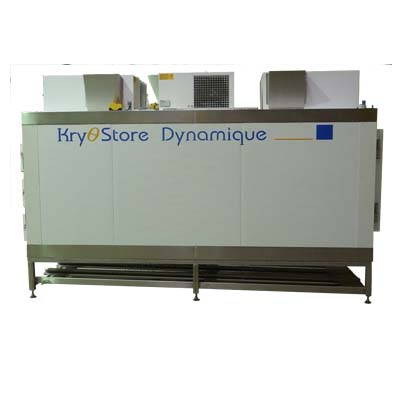

  • The KRYOSTORE®is the complement of KRYOSTICK®, it allows to store an outgoing complete trolley freezing order to release the KRYOSTICK® for a new freezing cycle.
  • Conservation below the freezing point of the stick (-0.5°C) maintaining an internal temperature of around -10°C/-12°C.
  • Automation, facilitating and securing use
