Product Price Detail


Power Supply 90-250V 50/60 Hz
Dimensions 13.5" W x 10" H x 6" D (343 mm x 254 mm x 153 mm).
Weight 5.3 lbs. (2.4 kg).
Language Protocol Modbus RS485 communication.
Temperature Inputs Two local inputs. Up to 48 remote inputs.
Display Operating Temperature 32°F - 105°F (0°C - 40.5°C).
Display 800 x 480 pixels.
Touchscreen Size 6" W x 3.375" H (153 mm x 86 mm)
Enclosure Material B1 standard splash proof.
User Interface 7" capacitive touchscreen.
Power Consumption 25W
Fans per AutoPilot Maximum 24 fans; 12 fans per leg

Product Description

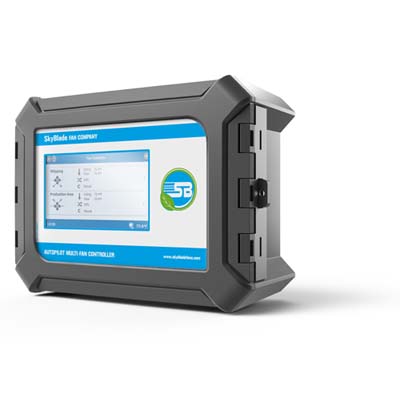

Take control of your fans from one location with the AutoPilot! This multi-fan control system features a fully integrated & wall mounted 7” LCD touchscreen display which gives you access to each fan individually or as a whole. Always have full control from anywhere with the AutoPilot.

  • Control up to 24 fans
  • Access and control your fans from any web enabled smart device
  • Group or pair fans to be controlled together, or control each fan separately
  • Set automatic mode to auto-adjust fan speed and maintain temperature settings
  • Password enabled with multi-level access
  • Create custom names for each fan or group of fans
  • 7” touchscreen interaction

    Download PDF
