MIRAI Products

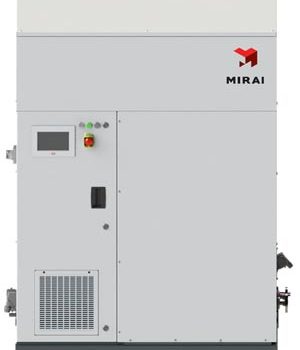

MIRAI Cold 10 O/W
| MODEL NAME | MIRAI Cold 10 (MC 10 O/W) |
| REFRIGERANT | Natural Air |
| TEMPERATURE RANGE | from -60 °C to -110 °C |
| SYSTEM COOLING | Water-cooled |
| OPERATION CYCLE | Open cycle |
| REFRIGERATION CAPACITY | Up to 5.4 kW |
| RATED MOTOR POWER | 10 kW |
| NOISE LEVEL | 70 dB |
| MAXIMUM ROTATION SPEED | 82 000 rpm |
| DIMENSIONS (L x W x H) | 100 x 142 x 172 cm |
| WEIGHT | 660 kg |

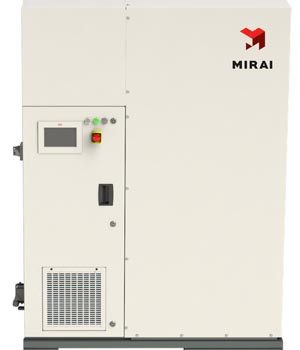

MIRAI Cold 10 T
| MODEL NAME | MIRAI Cold 10 T (MC 10 C/W/T) |
| REFRIGERANT | Natural Air |
| TEMPERATURE RANGE | from -40 °C to -110 °C |
| SYSTEM COOLING | Water-cooled |
| OPERATION CYCLE | Closed cycle |
| REFRIGERATION CAPACITY | Up to 6 kW |
| RATED MOTOR POWER | 10 kW |
| NOISE LEVEL | 70 dB |
| MAXIMUM ROTATION SPEED | 82 000 rpm |
| DIMENSIONS (L x W x H) | 110 x 140 x 180 cm |
| WEIGHT | 735 kg |
MIRAI Cold 15 (MC 15 O/A)
| MODEL NAME | MIRAI Col 15 (MC 15 O/A) |
| REFRIGERANT | Natural Air |
| TEMPERATURE RANGE | from -40 °C to -110 °C |
| SYSTEM COOLING | Air-cooled |
| OPERATION CYCLE | Open cycle |
| REFRIGERATION CAPACITY | Up to 9.5 kW |
| RATED MOTOR POWER | 15 kW |
| NOISE LEVEL | 75 dB |
| MAXIMUM ROTATION SPEED | 55 000 rpm |
| DIMENSIONS (L x W x H) | 155 x 186 x 204 cm |
| WEIGHT | 2 050 kg |

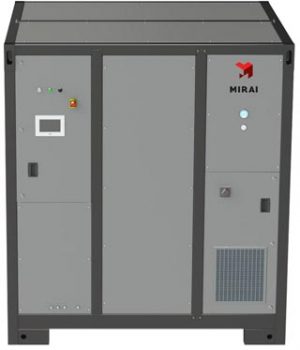

MIRAI Cold 23 C/W/T*
| MODEL NAME | MIRAI Cold 23 T (MC 23 C/W/T) |
| REFRIGERANT | Natural Air |
| TEMPERATURE RANGE | from -40 °C to -110 °C |
| SYSTEM COOLING | Water-cooled |
| OPERATION CYCLE | Closed cycle |
| REFRIGERATION CAPACITY | Up to 15 kW |
| RATED MOTOR POWER | 22.5 kW |
| NOISE LEVEL | 70 dB |
| MAXIMUM ROTATION SPEED | 48 000 rpm |
| DIMENSIONS (L x W x H) | 200 x 210 x 230 cm |
| WEIGHT | 2 500 kg |
